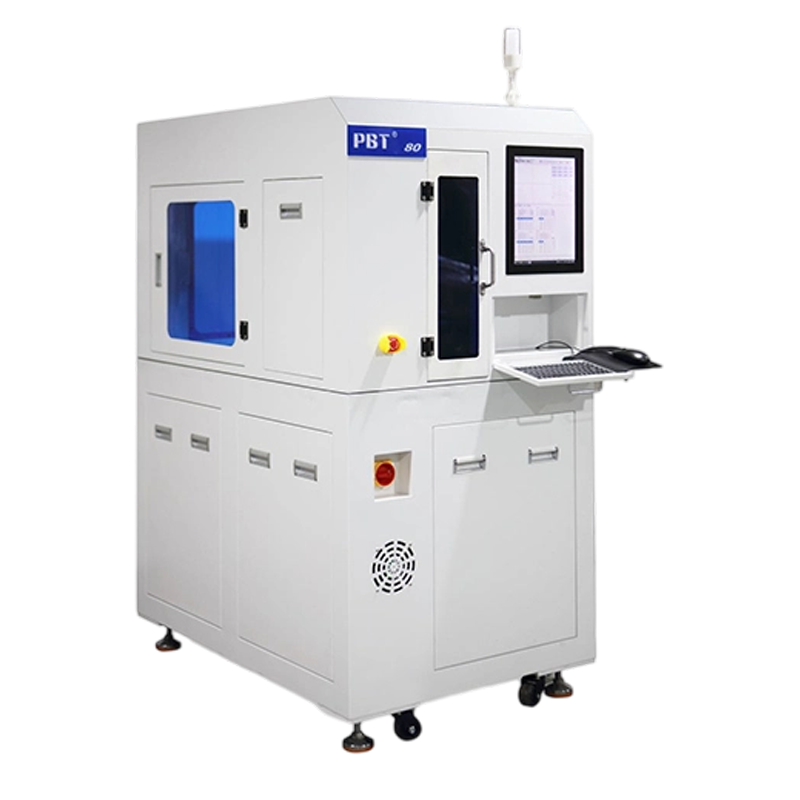

Intelligent Nozzle Cleaning and Inspection All-in-One Machine

The fully automatic nozzle cleaning and detection integrated machine is an energy-saving and environmentally friendly, batch cleaning integrated comprehensive cleaning machine. It can automatically complete the functions of cleaning, drying, scanning detection and sorting online. It is mainly applied to the cleaning of the suction nozzles of SMT placement machines in SMT workshops (such as Panasonic, Fuji, Siemens, Yamaha, Samsung, etc.).

Online Inquiry
Product Introduction

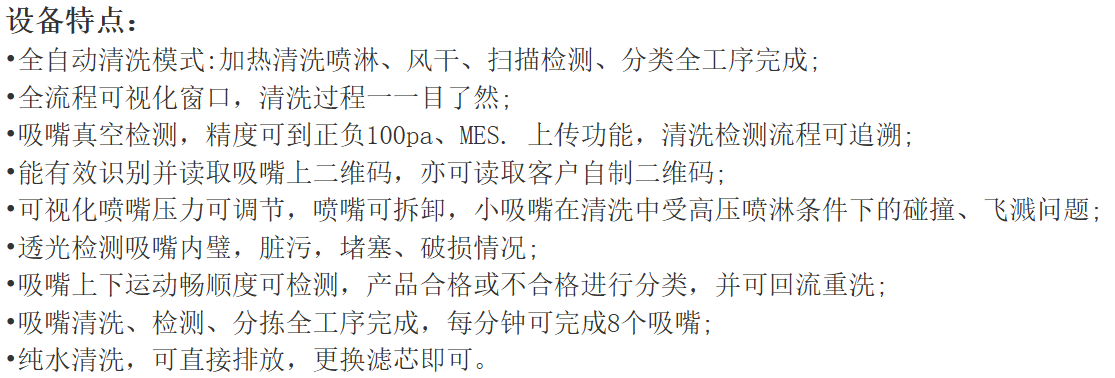

Equipment features：

• Fully automatic cleaning mode: The entire process including heating, cleaning, spraying, air drying, scanning and detection, and classification is completed.

• Full-process visual window, making the cleaning process clear at a glance;

• Vacuum detection of the suction nozzle, with an accuracy of ± 100pa, MES. Upload function, and the cleaning and detection process can be traced. It can effectively recognize and read the QR code on the suction nozzle, and also read the QR code made by the customer. The pressure of the visual nozzle is adjustable, the nozzle is detachable, and the small suction nozzle is affected by collision and splashing under high-pressure spray conditions during cleaning.

• Check the inner wall of the suction nozzle for dirt, blockage and damage through light transmission. The smoothness of the up and down movement of the suction nozzle can be detected. Products that are qualified or unqualified can be classified and reflow for re-washing. The entire process of cleaning, inspecting and sorting the suction nozzles is completed, with a capacity of 8 suction nozzles per minute. It can be washed with pure water and discharged directly. Just replace the filter element.

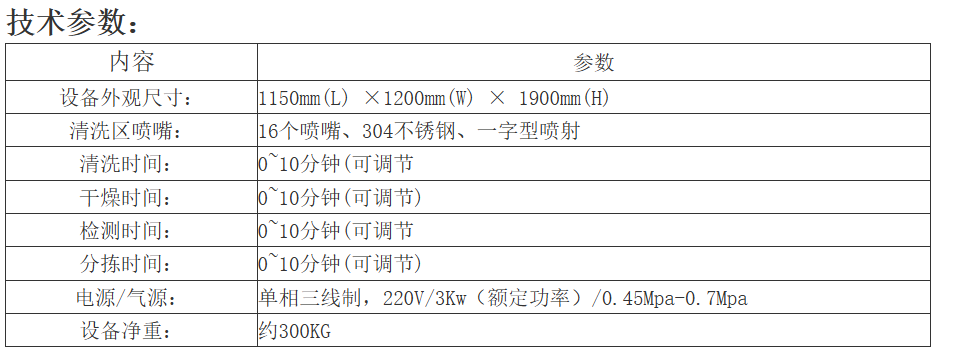

Product Parameters
Company Services

Experience and Technical Expertise in Technology and Spare Parts Maintenance Supply

  • Shenzhen Minfei Technology Co., Ltd. is a comprehensive solution provider for sales and services in the semiconductor packaging and SMT industry. We represent well-known SMT equipment brands such as the pick-and-place machines K&S (Assembleon) and ASM, reflow soldering, selective wave soldering Ersa, Sistec 3D AOI/SPI, and online substrate cleaning equipment, offering both sales and after-sales services. We have extensive experience and a solid technical foundation in technology and spare parts maintenance supply.
  • Shenzhen Minfei Technology Co., Ltd. provides customers with automated equipment solutions and can customize automation equipment according to client needs. This includes automated production line transfer equipment centered around loaders/unloaders. We also provide related design fixtures and jig products. Additionally, we focus on technical after-sales services for SMT packaging and mounting machines, including a range of high-end machines such as K&S and ASM pick-and-place machines, providing technical services and customized spare parts. We also offer full-line packaging services and on-site support.
