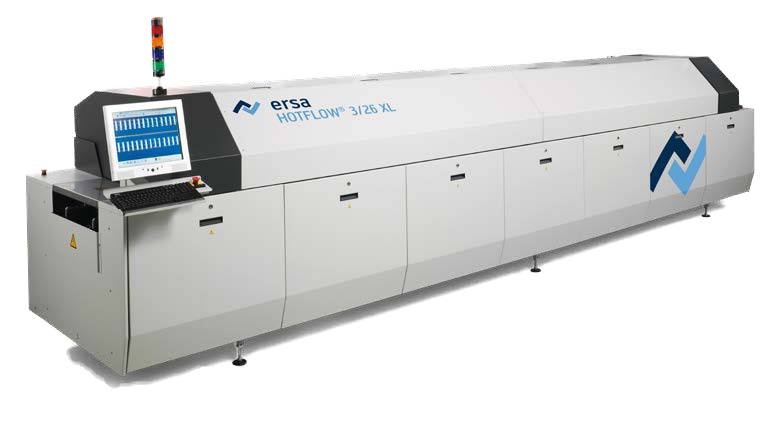

HOTFLOW 3/26 XL

This new HOTFLOW relies on the proven multi-nozzle Ersa proprietary heating technology and belongs to the third generation of machines. During the development phase of the HOTFLOW series, designers focused on improving heat transfer efficiency, reducing energy and nitrogen consumption, enhancing cooling performance, and optimizing process control through a complete redesign of the process tunnel. In terms of both production efficiency and floor space, HOTFLOW is undoubtedly a benchmark in the industry. With its dual-track, triple-track, and now four-track options, capacity can be increased fourfold without expanding the footprint! Additionally, different speeds and PCB widths can be set for each track, achieving maximum production flexibility. Currently, this machine can be set to handle three different products simultaneously with four different speeds and track widths. To ensure maximum machine availability, we use only the highest quality materials. Finally, all major components can be replaced within minutes, minimizing machine downtime.

Online Inquiry

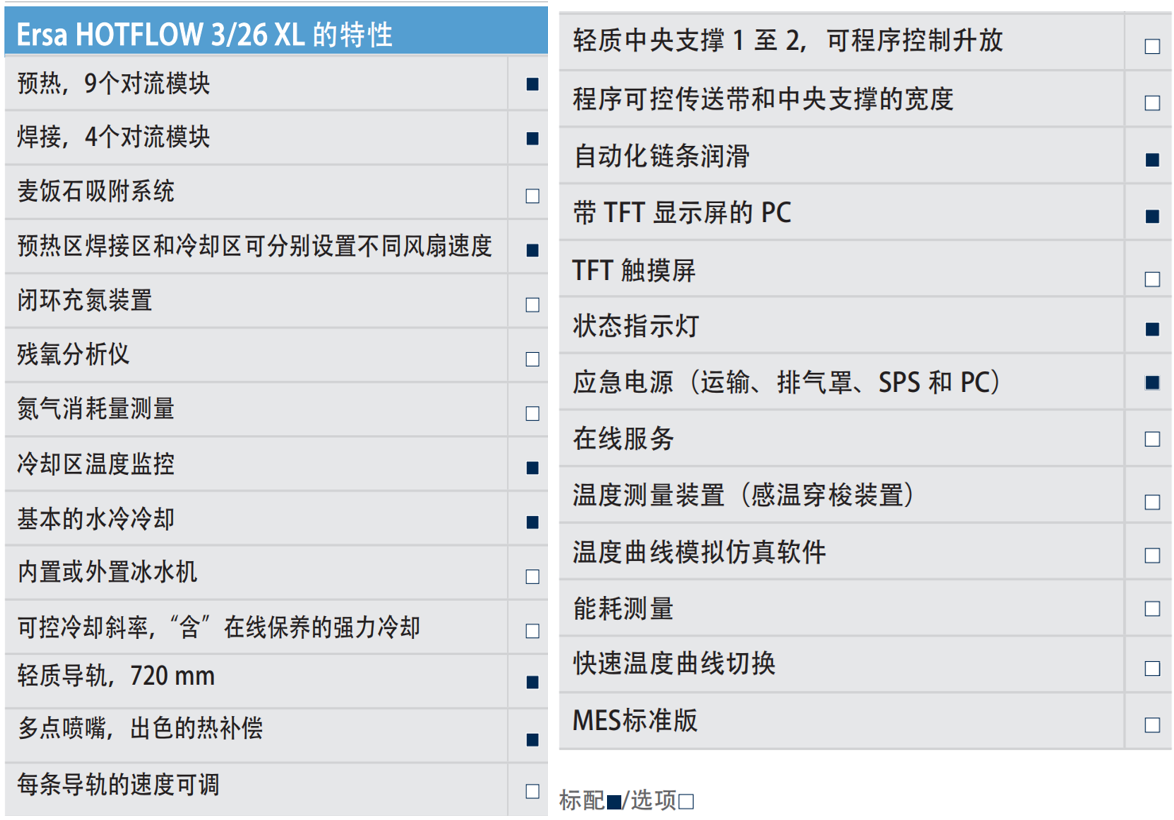

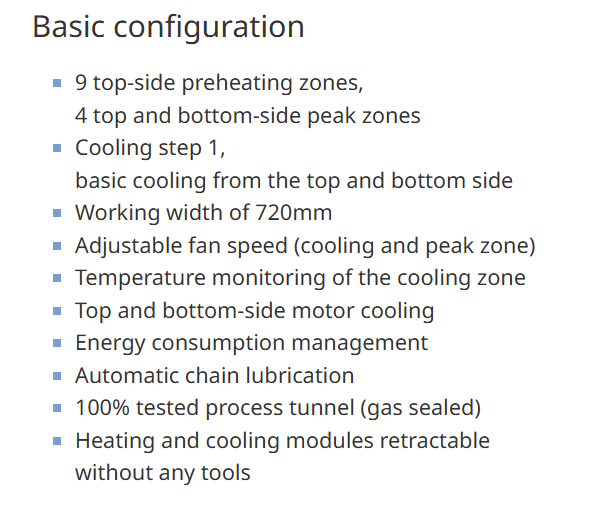

Product Introduction

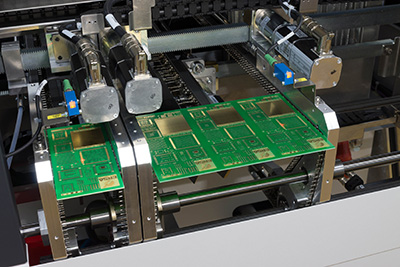

Dual, triple and quad track transport increases

throughput

Motor basic cooling top/bottom

Optimized heat transfer, minimized Delta T, zone

separation & temperature controlled cooling

“On-The-Fly” maintenance under N2 atmosphere

reduces downtime

Switchable internal/external cooling unit

100 % tested process tunnel (gas sealed)

Lowest energy and N2 consumption

Best machine uptime

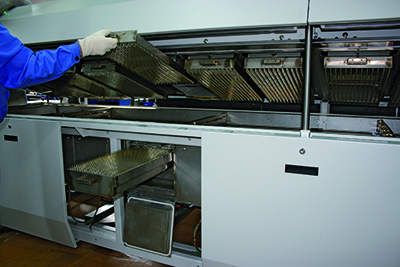

Without any tool retractable heating modules

Energy efficient blower motors

Ultra Low-Mass Center Support

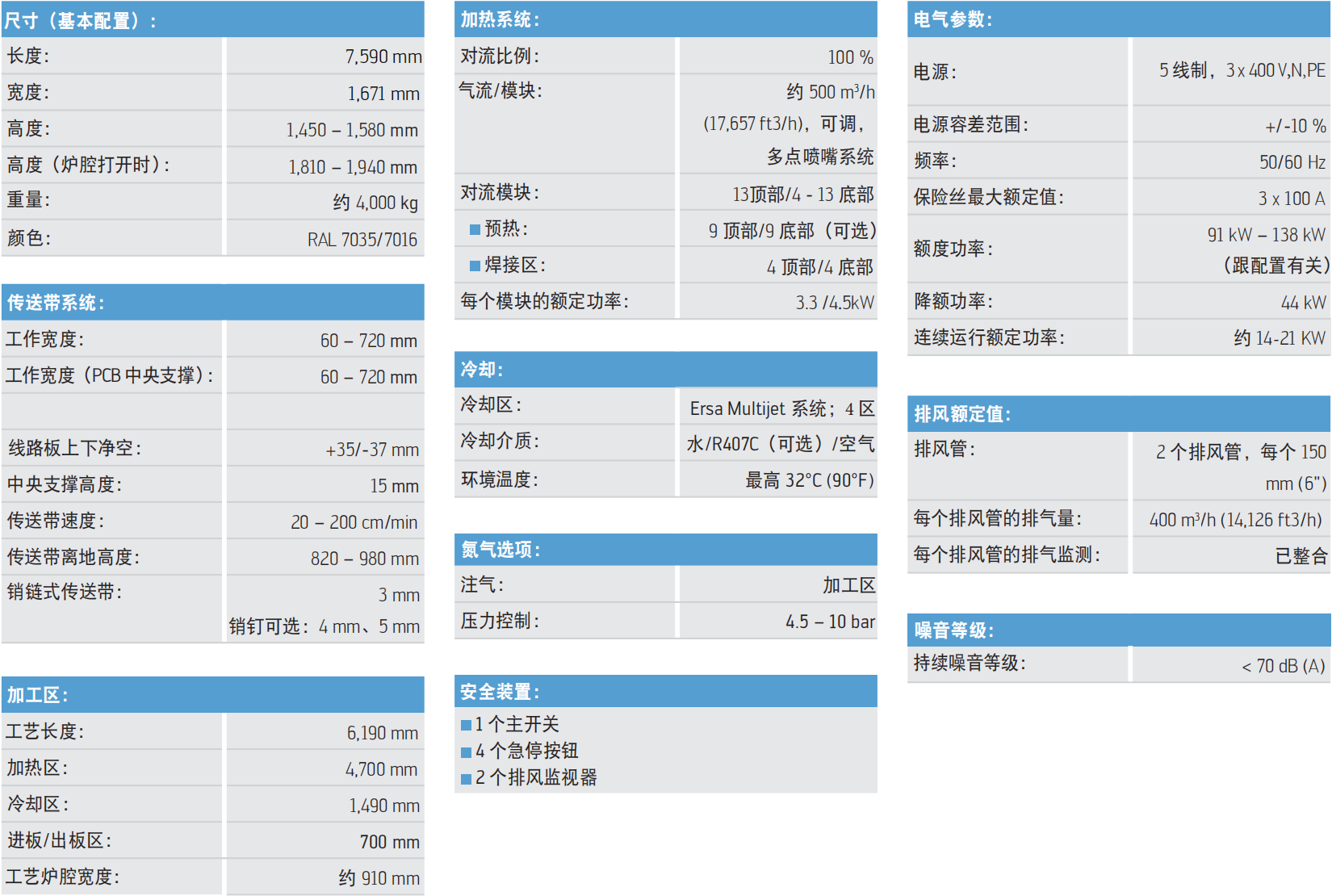

Product Parameters
Company Services

Sales and technical services of the company's key equipment

  • Shenzhen Minfei Technology Co., Ltd. is a comprehensive solution provider for sales and services in the semiconductor packaging and SMT industry. We represent well-known SMT equipment brands such as the pick-and-place machines K&S (Assembleon) and ASM, reflow soldering, selective wave soldering Ersa, Sistec 3D AOI/SPI, and online substrate cleaning equipment, offering both sales and after-sales services. We have extensive experience and a solid technical foundation in technology and spare parts maintenance supply.
  • Shenzhen Minfei Technology Co., Ltd. provides customers with automated equipment solutions and can customize automation equipment according to client needs. This includes automated production line transfer equipment centered around loaders/unloaders. We also provide related design fixtures and jig products. Additionally, we focus on technical after-sales services for SMT packaging and mounting machines, including a range of high-end machines such as K&S and ASM pick-and-place machines, providing technical services and customized spare parts. We also offer full-line packaging services and on-site support.
