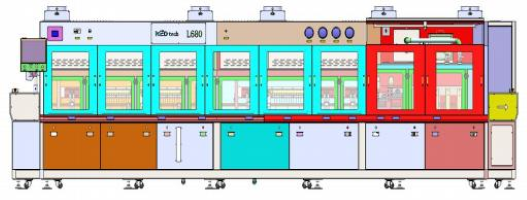

L680 Online Cleaning Machine

1. This equipment is designed for batch cleaning needs, completing the full process of chemical cleaning, pure water rinsing, and drying on the production line at once. Its excellent cleaning performance ensures effective removal of flux, organic and inorganic contaminants, enhancing product cleanliness and performance, making it suitable for high-efficiency industrial production requirements.

2. The equipment is equipped with a unique spray system specially designed for the cleaning of large-sized and low-gap precision components, capable of thoroughly cleaning complex-shaped parts to ensure no dead spots. This system can evenly distribute the cleaning agent, ensuring that every surface is effectively cleaned, improving cleaning accuracy and efficiency.

3. Equipped with a high-efficiency air knife water-cutting system, combined with an extra-long air knife drying section, it can quickly blow off water from the surface of components, ensuring no water marks remain after cleaning. At the same time, rapid air-cut drying greatly enhances overall production efficiency.

Online Inquiry
Product Introduction
The online cleaning machine is primarily used for high-volume production of SIPs and micro-assembly modules, mainly addressing the post-soldering cleaning process of board-mounted products under SMT technology. It supports a fully automated cleaning system and is used in conjunction with a loading and unloading system. It efficiently cleans residues such as flux, airborne dust particles, or other contaminant impurities during various bonding and soldering processes. After cleaning, products achieve a clean surface, completely free of flux, oil, dirt, and other contaminant residues, meeting the cleanliness requirements of various packaging processes.

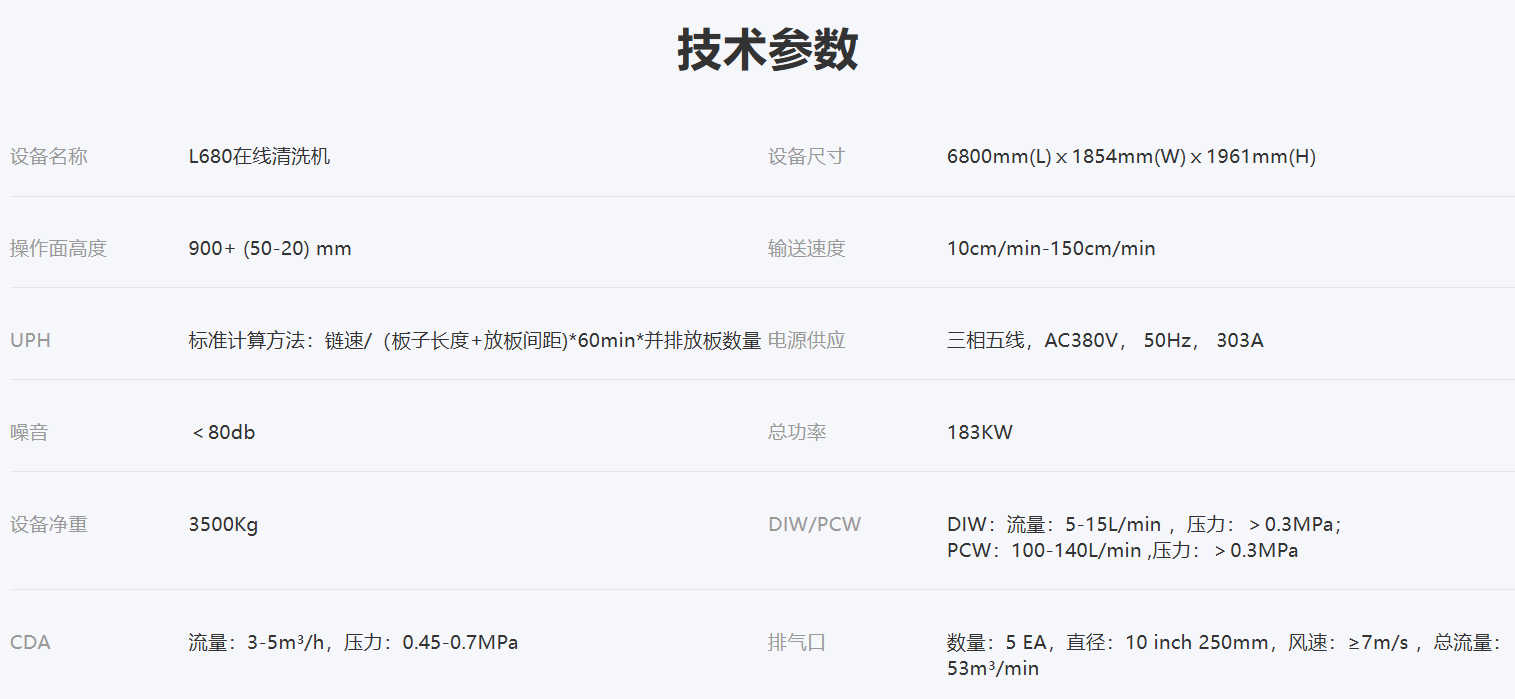

Product Parameters

 6800mm(L)x1854mm(W)x1961mm(H) Operating Surface Height: 900+ (50-20) mm Conveying Speed: 10cm/min-150cm/minUPH: Standard Calculation Method Chain speed/(board length + board spacing)*60min* Number of boards placed in parallel power supply: three-phase five-wire, AC380V, 50Hz, 303A Noise: < 80db Total power: 183KW Equipment net weight: 3500KgDIW/PCW: DIW: Flow rate: 5-15L/min, pressure: > 0.3MPa; PCW: 100-140L/min, pressure: > 0.3MPa. Cda: Flow rate: 3-5m³/h, pressure: 0.45-0.7MPa. Exhaust ports: Quantity: 5 A, diameter: 10 inches 250mm, wind speed: ≥7m/s, total flow rate: 53m³/min
